GAS STORAGE CONTAINER
DESCRIPTION

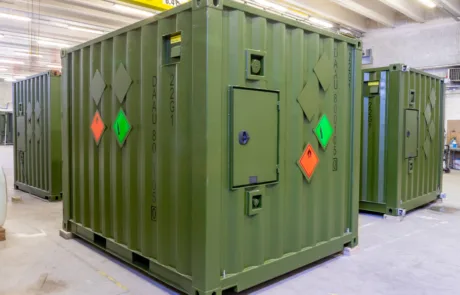

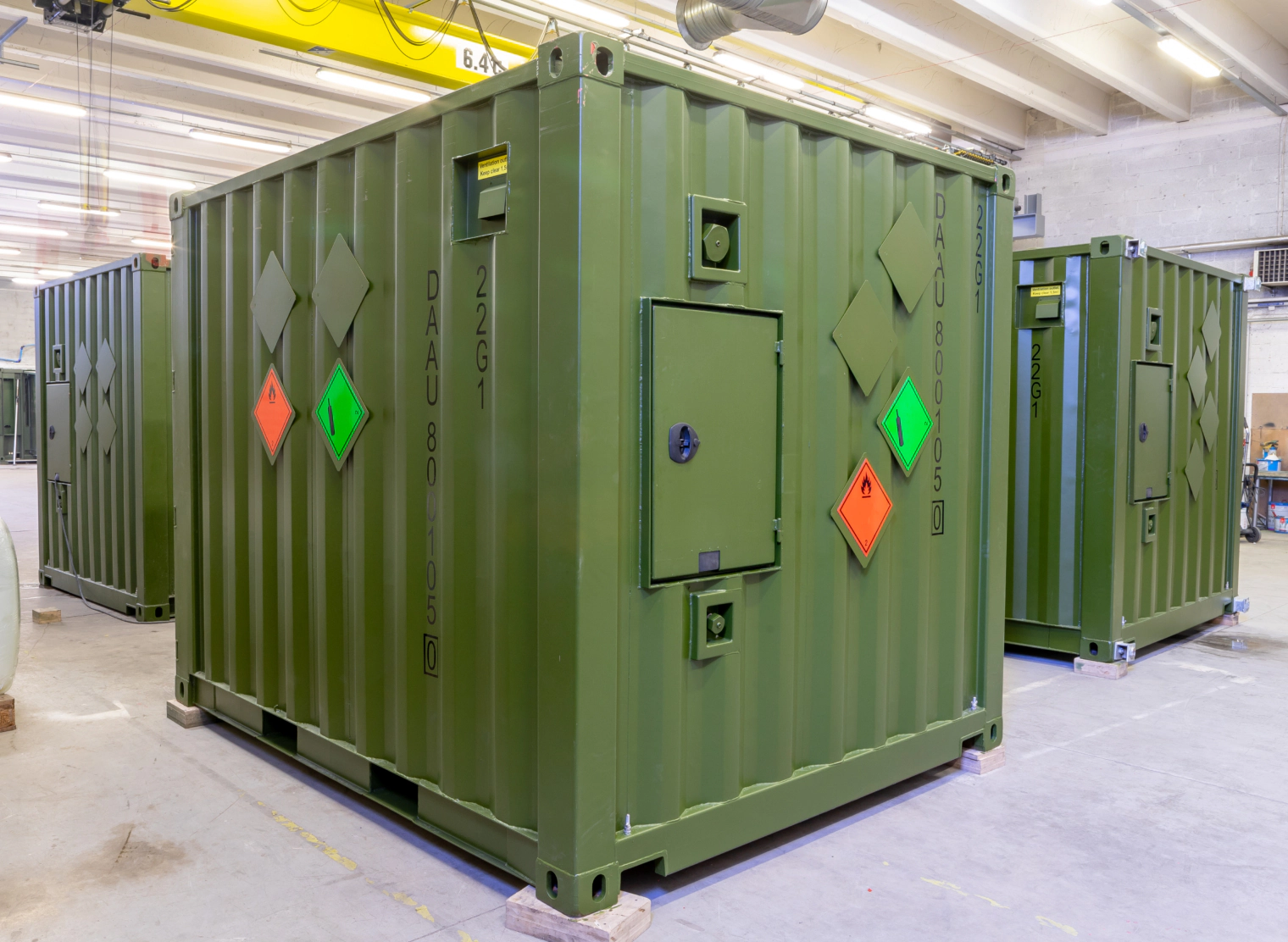

10ft container designed for safe storage and transport of gas cylinders.
SPECIFICATIONS

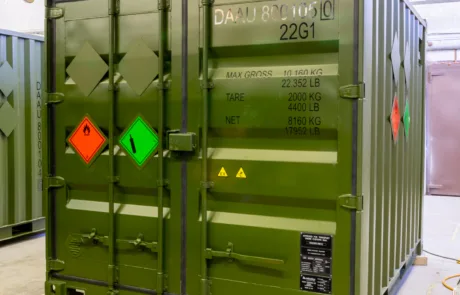

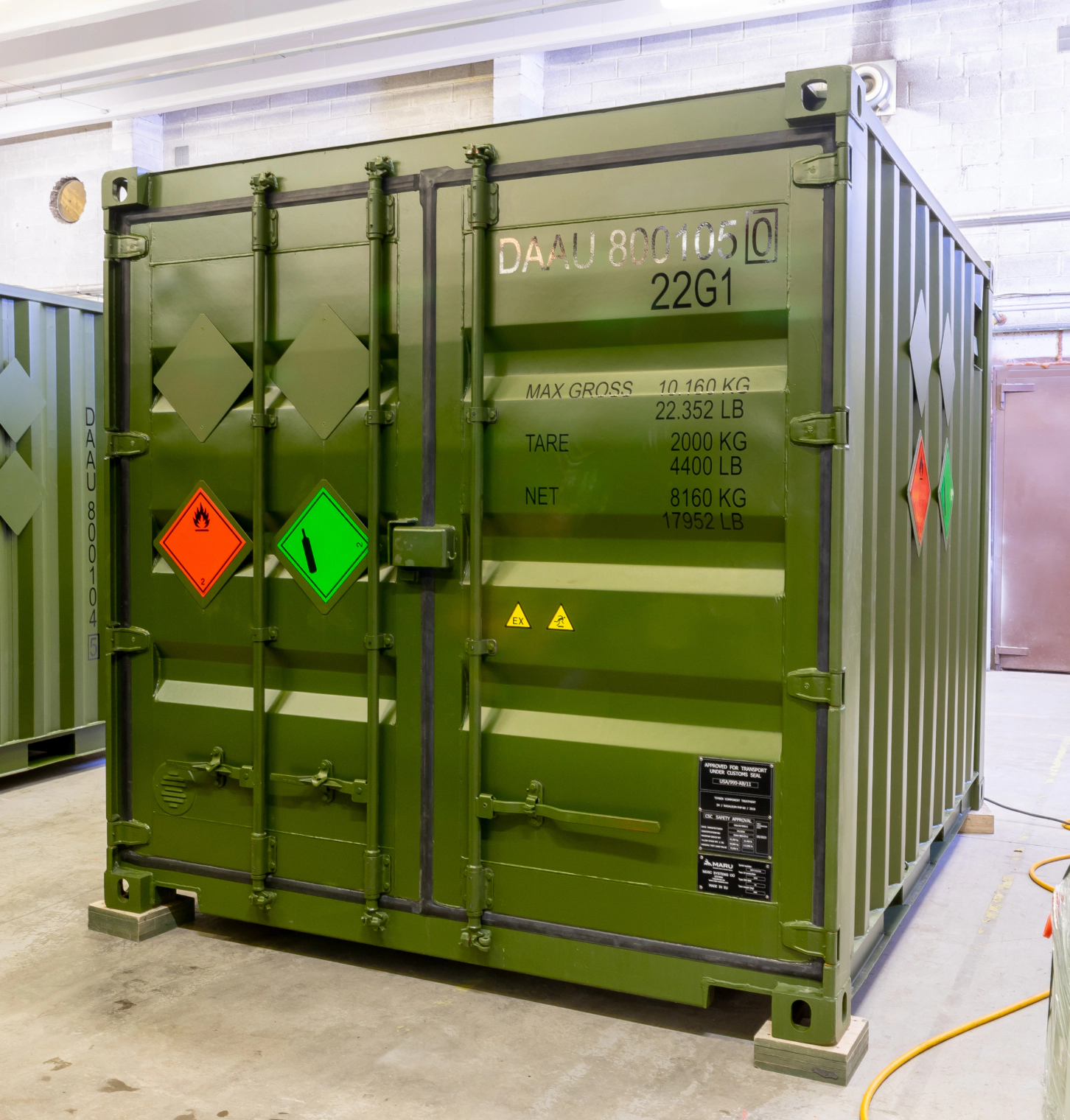

| Gross weight: | 10 000 kg |
| Load capacity: | 8000 kg |
| Dimensions according to ISO 668: | 1D (10ft) |
| Total length: | 2991 mm |
| Height: | 2438 mm |
| Width in transport: | 2438 mm |
| Width when opened: | 2438 mm |
| Insulation: | unisulated |
| Floor area when expanded: | ~6 m² |
| Standards: | ISO 1161: 2016, ISO 1496-1-5: 2013, ADR 2.2, ATEX ZONE 2G, TRG 280, CSC certificated |
| Operating temperature: | from -34°C to +50°C |
| Deployment and repack time: | 5 minutes |

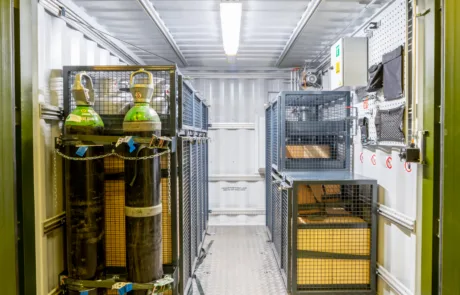

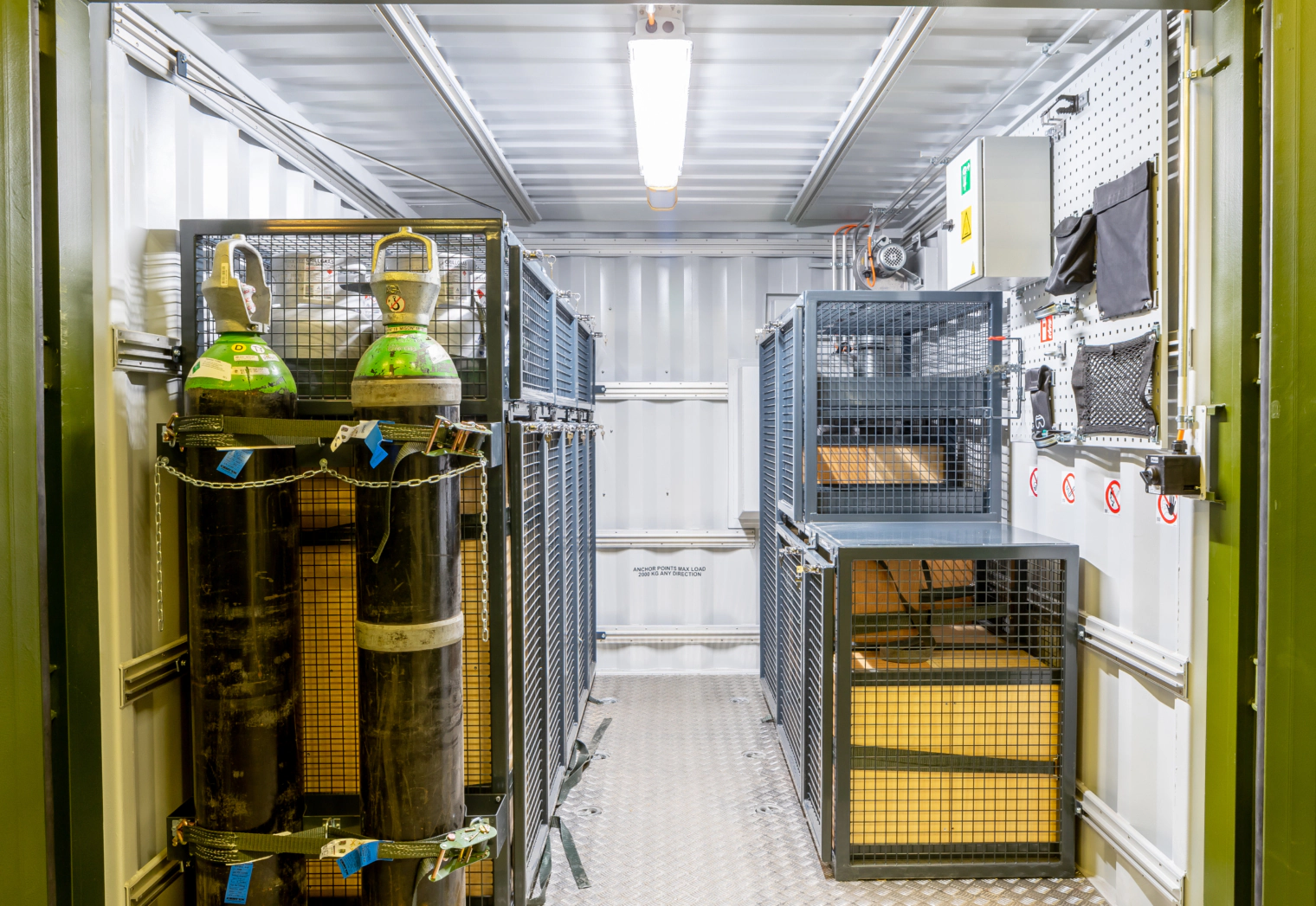

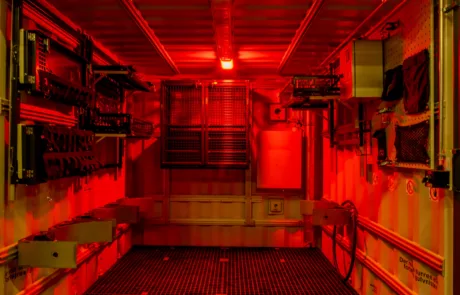

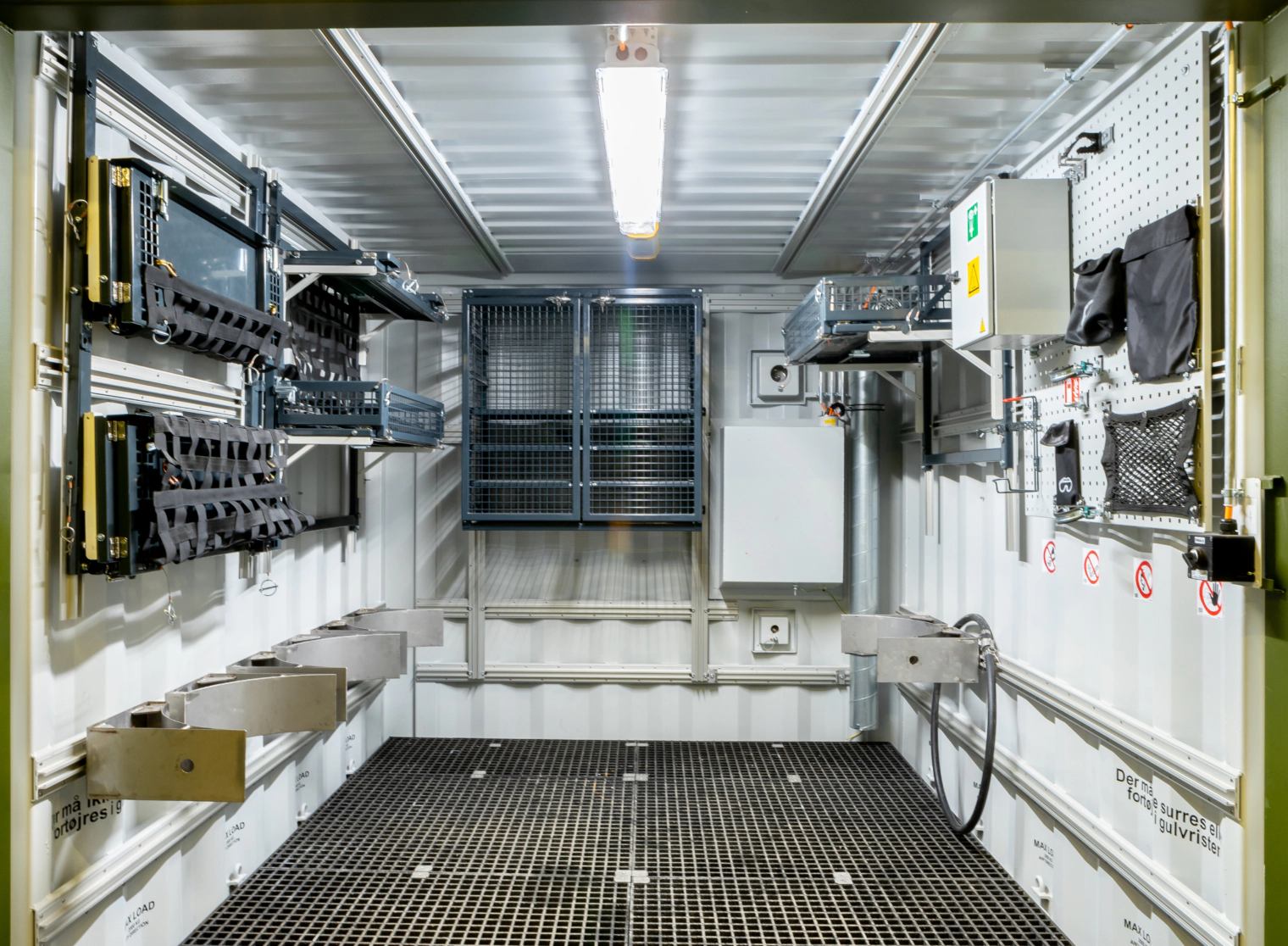

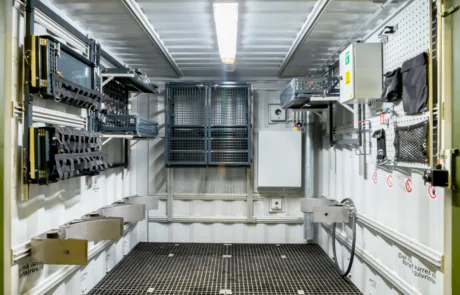

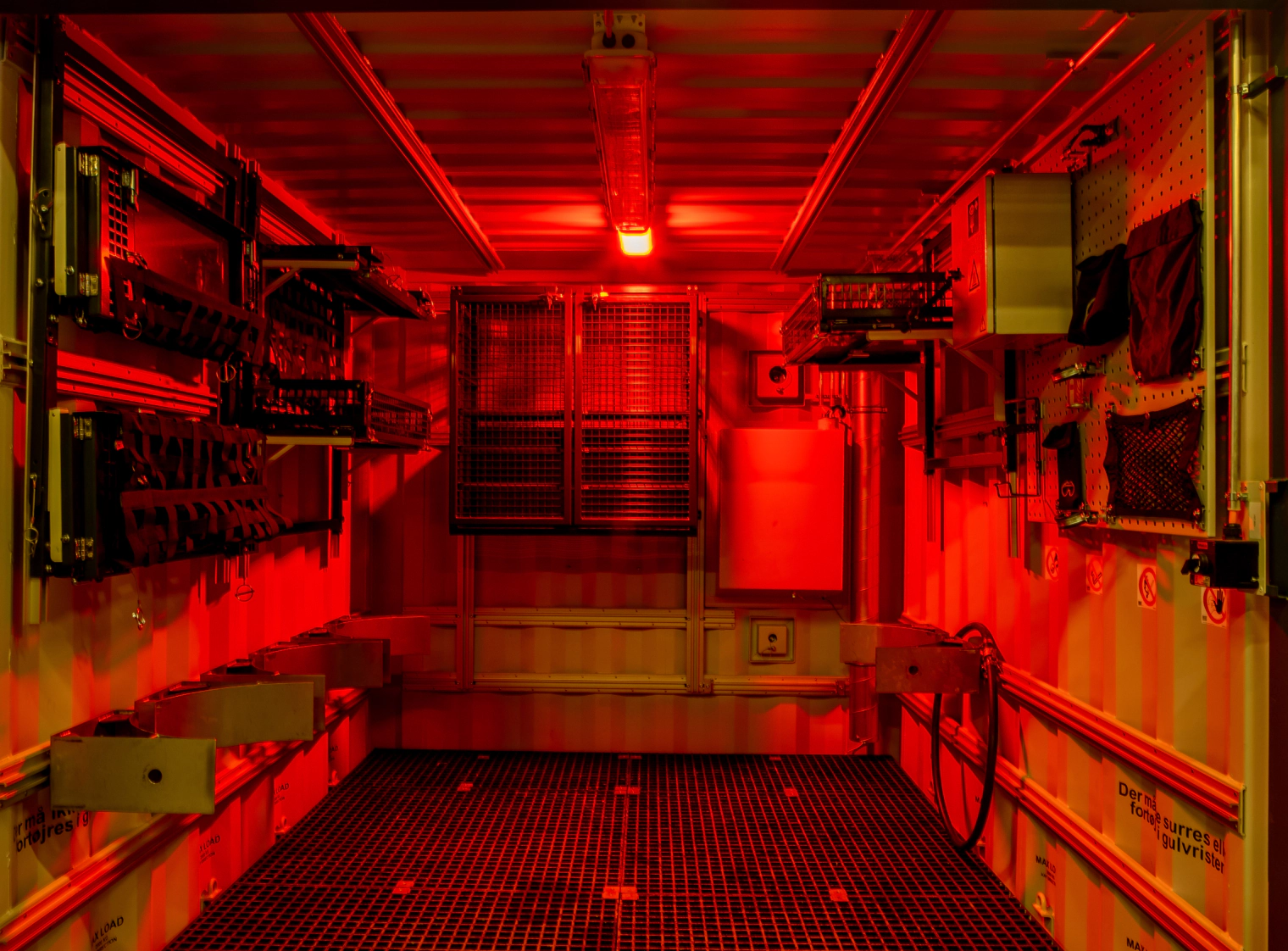

| Equipment: | ATEX ligthing, Gas cylinder storages, 6 lashing points, ATEX ventilation |
